ACUTE XP1506R – DIGITAL HV LOW PROFILE DABLTS BRUSHLESS SERVO – TITANIUM/STEEL GEARS – FULL ALLOY CASE (15.0KG TORQUE – 0.06S SPEED @7.4V)

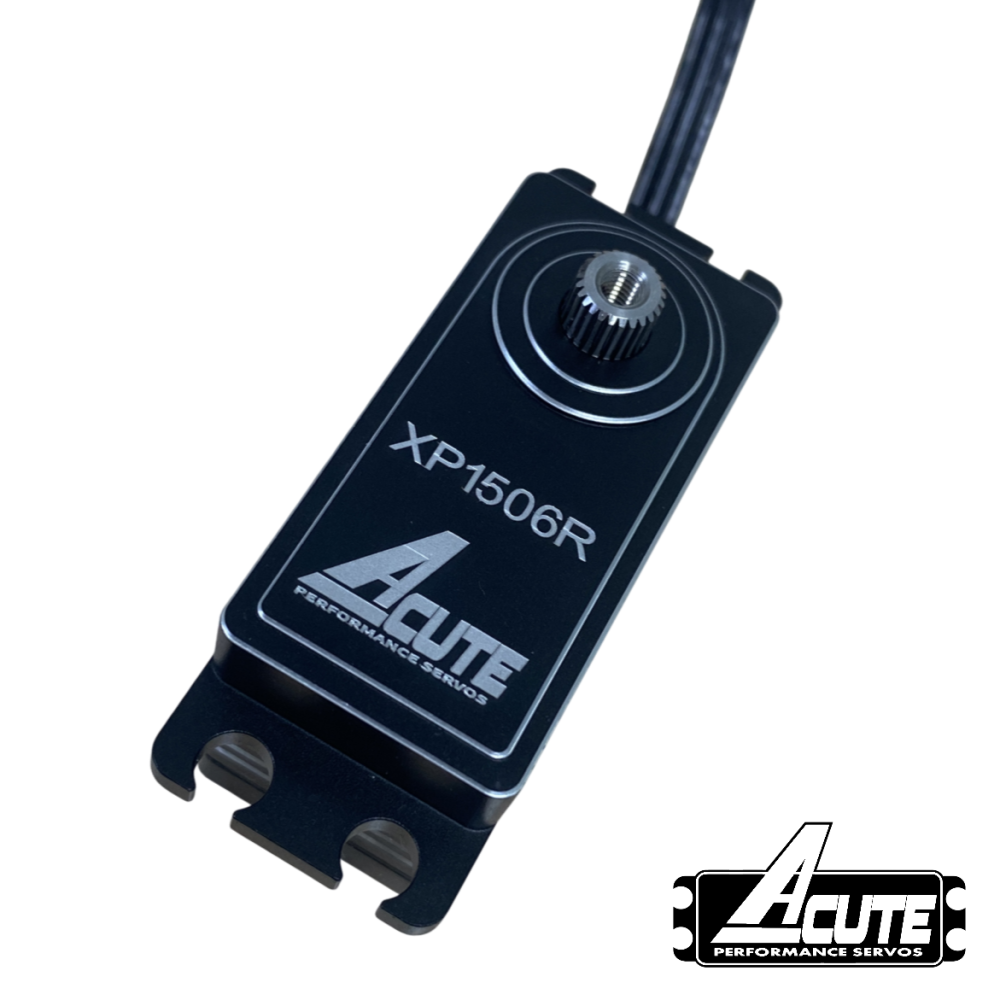

ACUTE – XP1506R – DIGITAL HV LOW PROFILE DABLTS BRUSHLESS SERVO

This is the all new XP1506R low profile digital servo from ACUTE PERFORMANCE SERVOS.  Offering super high speed, ample torque, steel/titanium gears and full alloy casing make this low profile servo a serious contender. Ideal for both 1/10th off road 2wd buggies or on road applications

So what exactly is DABLTS. Quite simply it is the code of each of our servos key main features, making it easier to compare this and future models in the range

• D is for Digital for its digital output
• A is for its Aluminium machined full casing
• BL is for its Brushless motor type
• TS is for the combination of Titanium and Steel ultra high strength drive gears

KEY FEATURES

• Extremely fast for its low profile size.
• Capable of HV operation with an operating range between 6.0v and 8.4v
• Super strong, precision made 7075 titanium and 303 steel gears provide a high level of durability even with heavy use
• Brushless motor for smooth, faster and more efficient operation.
• Direct Drive, Pulse Width control with high end PCB and potentiometer
• Ultra Low power consumption
• CNC engraved fully machined all-aluminium casing
• SSR and SHR Modes compatible

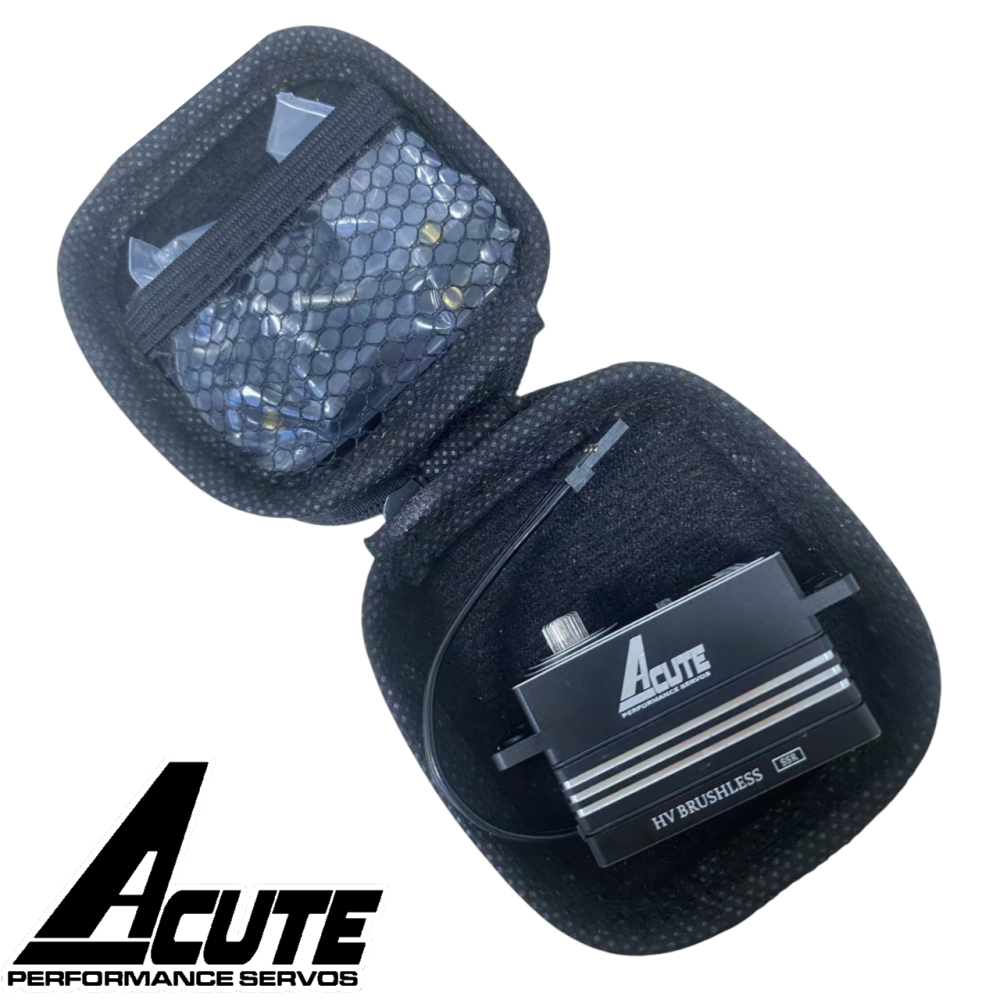

• Supplied in a handy re-useable hard shell storage case

SPECIFICATIONS

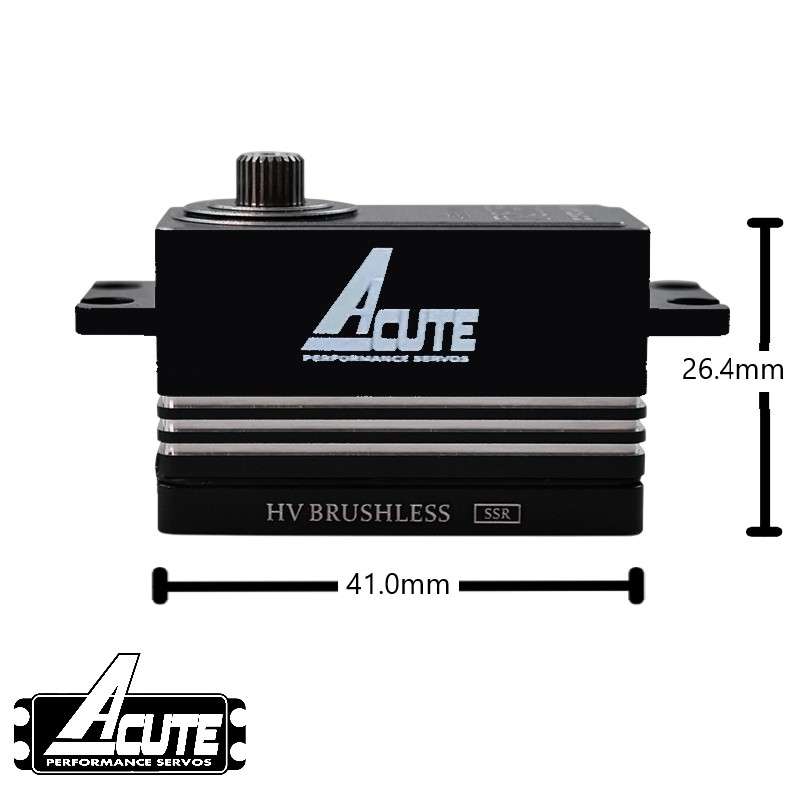

• Dimensions: 41.0 x 20.0 x 26.4mm
• Weight: 52.0g/1.83oz
• Speed (@6.0V sec/60): 0.072 sec
• Torque (@6.0V kg-cm): 11.5kg/cm
• Speed (@7.4V sec/60): 0.06 sec
• Torque (@7.4V kg-cm): 15kg/cm
• Speed (@8.4V sec/60): 0.05 sec
• Torque (@8.4V kg-cm): 16.5kg/cm
• Gear: 303 Steel and 7075 Titanium
• Case: Aluminium
• Servo Horn: 25 Tooth Spline
• Bearings: Dual precision ballraces
• Operating Frequency: 1520μs/330hz
• Wire/Plug: All black stealth wire with JR type plug installed

Acute Performance Servos cater for a wide range of applications, from high-speed serious racing to entry level bashing and recreational usage. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, all at a great price point, making them first choice every time for all of your servo needs.
