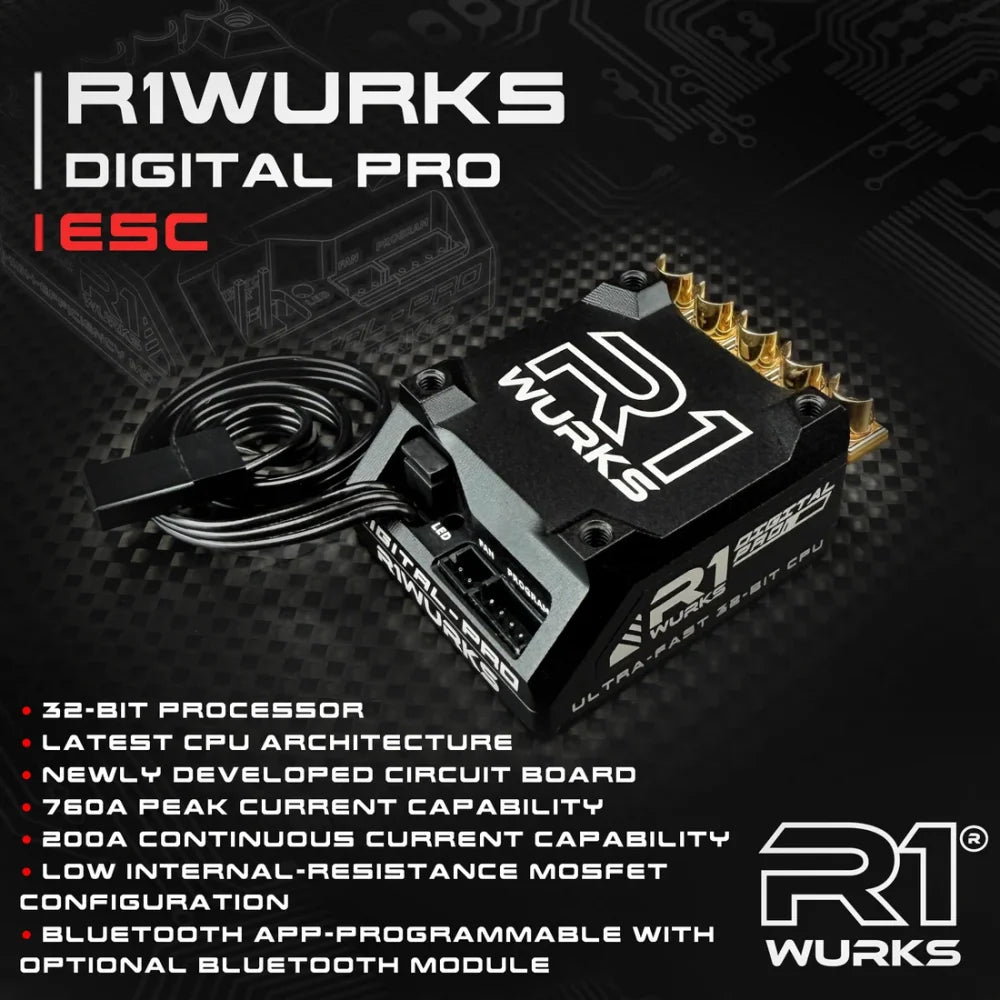

R1 Wurks – Digital Pro – Pro competition spec electronic speed controller

R1WURKS Digital Pro ESC

Whether you’re a Modified or Spec racer looking for power, efficiency, and complete adjustability, the new no-compromise R1WURKS Digital Pro ESC gives you the precision and control to fine-tune your setup and get the most out of your car.

Featuring the latest CPU architecture and a newly engineered circuit board, the ESC delivers fast, precise control for high-performance 1/10 scale RC racing applications.

Designed for 540-size sensored brushless motors used in both Spec and Modified racing, the ESC delivers an impressive 760A peak current and 200A continuous current, while the integrated 7A BEC provides selectable 6V or 7V output for your receiver and servos.

Easy Adjustability and Tuning: Wireless programming and setup are available through the optional R1WURKS Bluetooth module, with support for compatible Android and iOS devices.

Compatibility Notice: The Digital Pro ESC runs on its own dedicated platform and is not compatible with the Digital 3 system or the Digital 3 WiFi module.

KEY FEATURES

• 32-bit processor for ultrafast, precise ESC control
• Latest CPU architecture and newly developed circuit board for enhanced performance and efficiency.
• 760A peak current capability
• 200A continuous current capability
• Low internal-resistance MOSFET configuration optimized for spec racing applications.
• Bluetooth app-programmable with optional Bluetooth module
• Supports 6.0–9V input voltage
• Designed for 540-size sensored brushless motors
• Motor limit: 4.5 turns and higher
• Built-in 7A BEC
• Pre-installed 12 AWG black wires and power capacitor.
• Selectable 6V / 7V BEC output
• Removable power switch
• Lightweight 40g design, ESC only w/o fan
• Compact design:
  • Width: 31mm
  • Length: 35.6mm footprint / 41.5mm including solder posts
  • Height: 17mm without fan / 27.3mm with fan

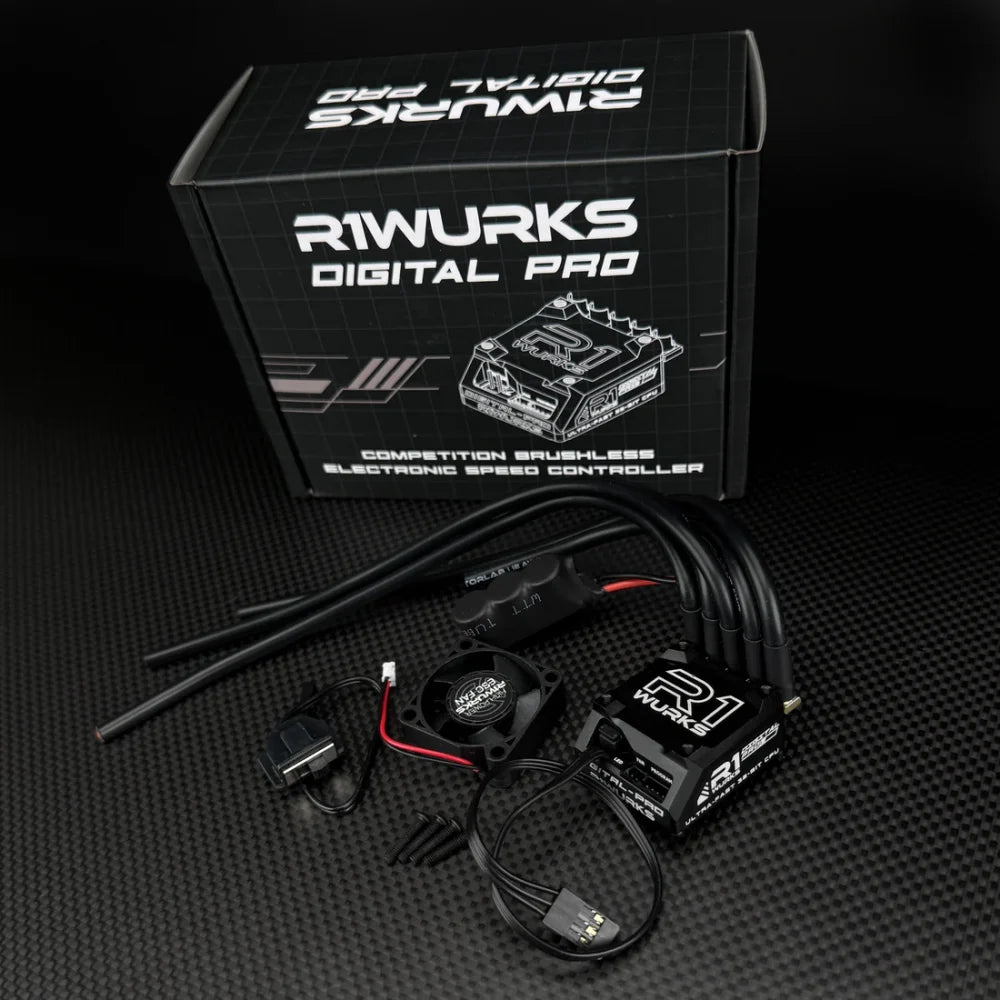

What’s in the Box!

• Digital Pro ESC
• Power capacitor (pre-wired)
• Switch-delete jumper plug (installed)
• On/Off switch
• ESC fan (30×30×10.3mm)
• 4× fan mounting screws M2.5 × 12mm button head (1.5mm hex)

Optional Wireless Programming Module available
