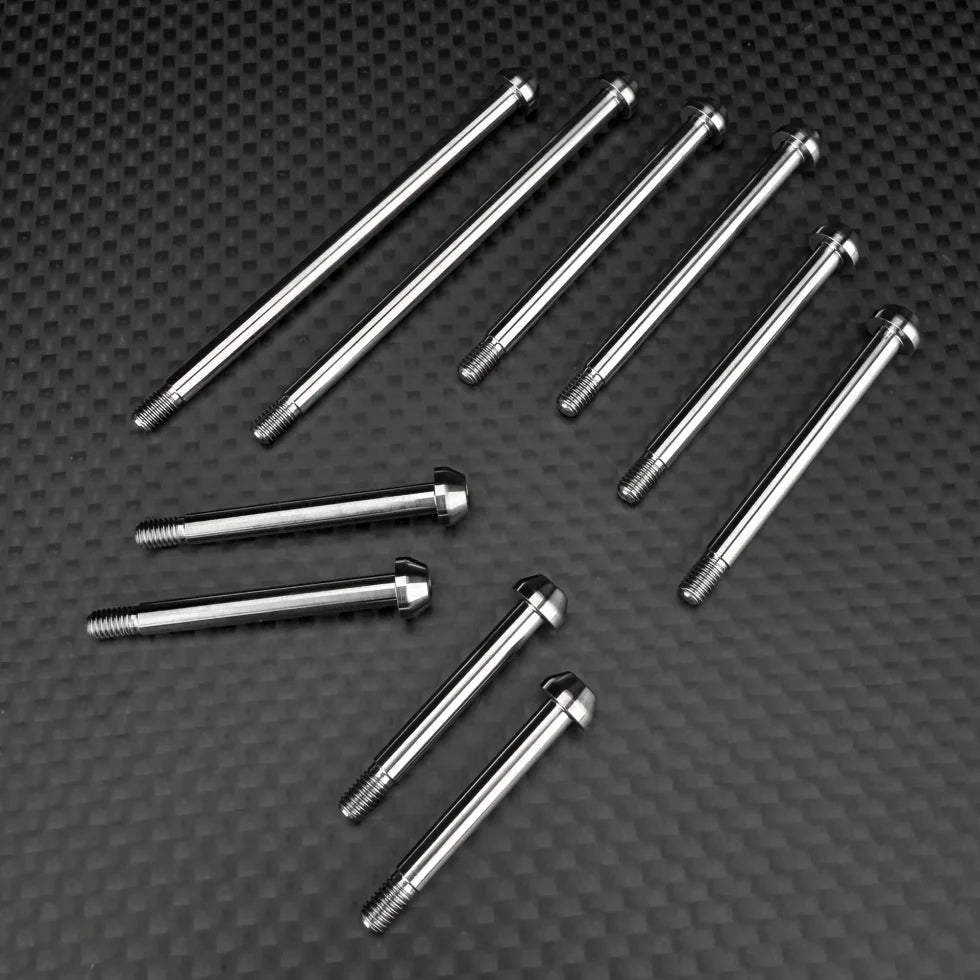

R1 Wurks – Titanium hinge pin set – natural – 10 pcs (AE RC10 Series)

R1WURKS (RC10 Series) Titanium Hinge Pin Set

We manufacture these hinge pins in-house to precise tolerances using premium Grade 5 titanium and one of the most sophisticated Swiss lathes available. The result is the perfect upgrade for any racer looking to reduce vehicle weight while adding precision, performance, and style.

The threaded portion is manufactured using a thread-rolling process. Unlike traditional cut threads, which cut through and disrupt the material’s natural grain flow, cold-formed threads are rolled into shape, preserving the continuous grain flow of the material. This results in a stronger, more uniform thread structure.

Features and Specifications:

• In-house ultra-precision Swiss machining
• High-strength Grade 5 titanium (Ti-6Al-4V)
• Manufactured with tight tolerances
• Set is 44% lighter than steel hinge pins
• Cold-formed threads enhance grain structure and increase material hardness

Color Options:

• Natural Titanium
• Blue
• Bronze

This part fits the following vehicles:

• RC10 (Verify compatibility by checking the included sizes against your model specifications)

Set Includes: (1/8″ Pins with M3 Threads)

• x2 Hinge Pin, 20.4mm [28.2mm]
• x2 Hinge Pin 25.4mm [33.2mm]
• x2 Hinge Pin, 31mm [38.8mm]
• x2 Hinge Pin, 35.7mm [43.5mm]
• x2 Hinge Pin, 50.9mm [58.7mm]

Note: M3 Lock nuts not included | Titanium nuts available
