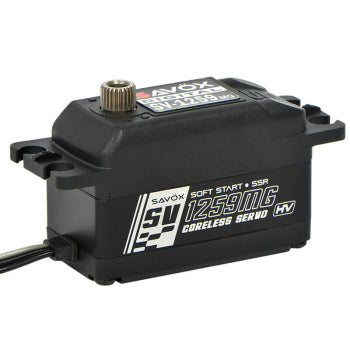

SAVOX HV LOW PROFILE DIGITAL SERVO 22KG/0.075S@7.4V

The SV1259MG is a high-voltage, low-profile digital servo engineered for performance in tight spaces. With a robust coreless motor and hardened metal gearing, it delivers crisp, responsive control which is ideal for cars or other applications demanding both torque and speed.

Specifications

• Dimension(mm): 40.8 x 20.2 x 27.4
• Weight(g): 49
• Speed @6.0V (sec/60): 0.10
• Torque @6.0V (kg-cm): 15
• Speed @7.4V (sec/60): 0.085
• Torque @7.4V (kg-cm): 19
• Speed @8.4V (sec/60): 0.075
• Torque @8.4V (kg-cm): 22
• Gears: Metal
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 25 Tooth Spline
