ToolKit RC

TOOLKIT RC – M6DAC V2 – 0.1-16.0AMP 400W MULTI-CHEMISTRY 240V AC/12V DC 2 CHANNEL CHARGER AND DISCHARGER WITH 65A FASTCHARGE (1-6S LIPO OR 1-16S NIXX)

TOOLKIT RC – M6DAC V2 – 0.1-16.0AMP 400W MULTI-CHEMISTRY 240V AC/12V DC 2 CHANNEL CHARGER AND DISCHARGER WITH 65A FASTCHARGE (1-6S LIPO OR 1-16S NIXX)

Regular price £89.95 GBP
Regular price Sale price £89.95 GBP
Sale Sold out
Taxes included.
Quantity

How to make a classic even better – introducing the M6DAC V2

Charges a wide range of battery chemistries including LiPo, LiHV, LiFe, LiIon, LTO, Pb, NiMH, NiCd

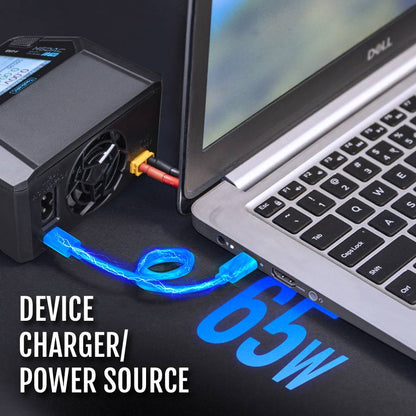

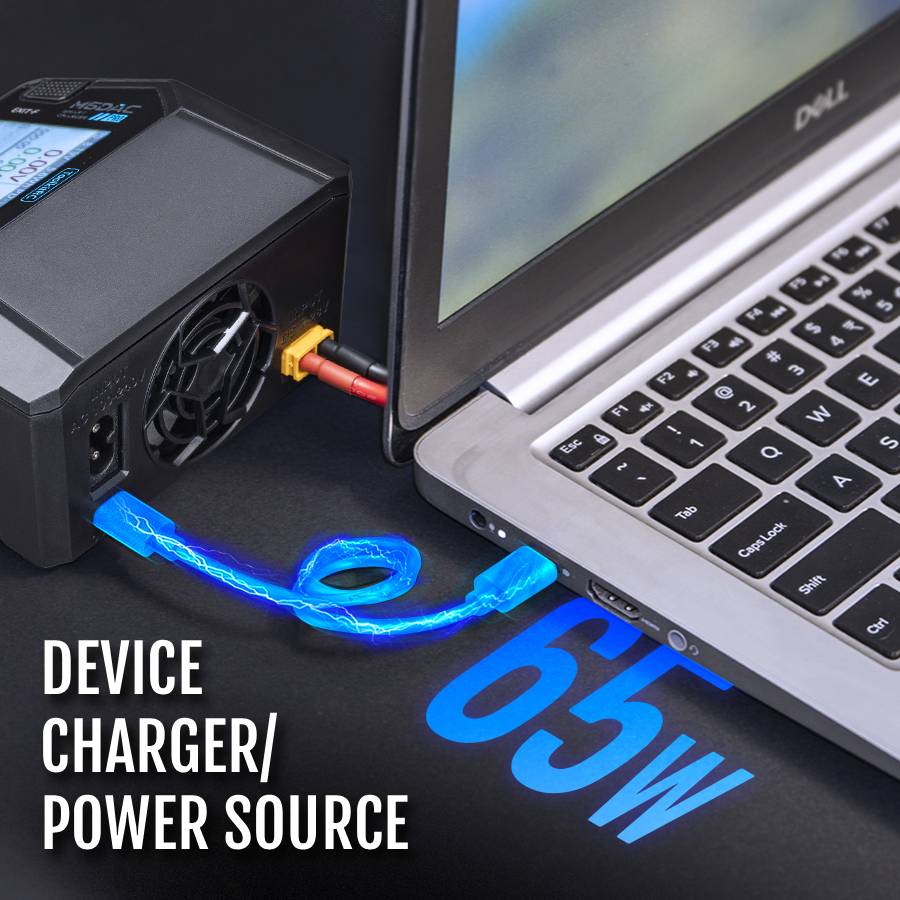

65watt super flash out put type c charger (for laptops and phones etc)

Extremely compact size, packs a mighty punch in a small case.

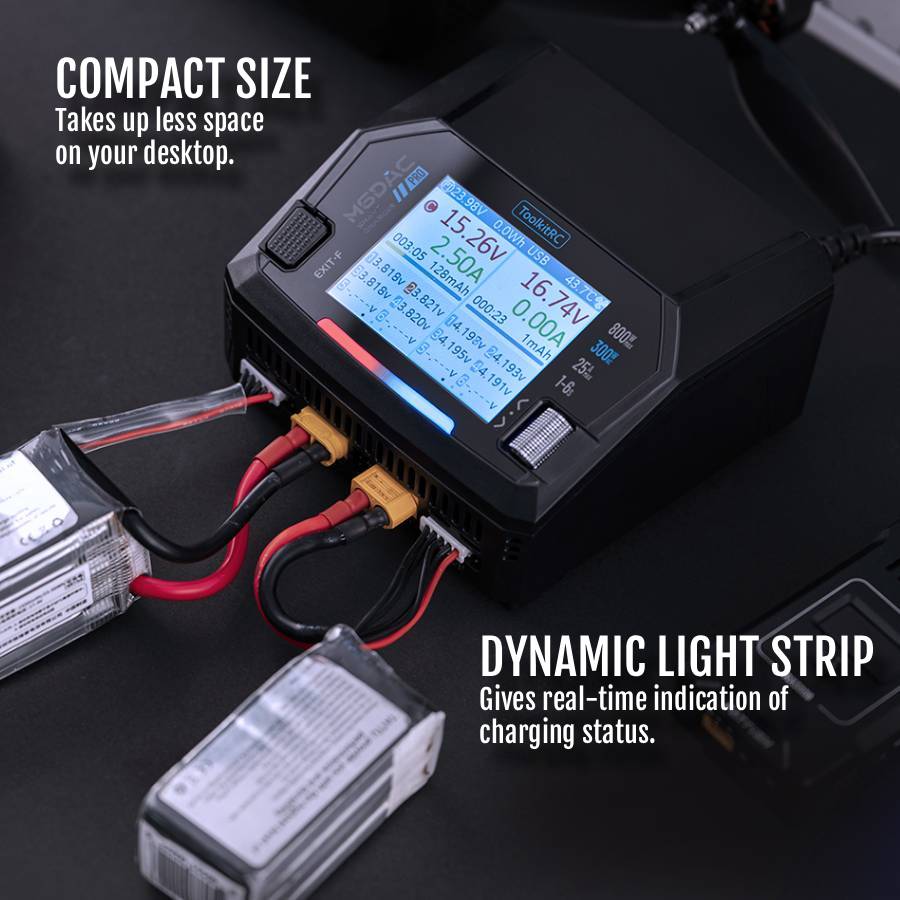

Dynamic light strip – real-time indicator of charging status for each channel

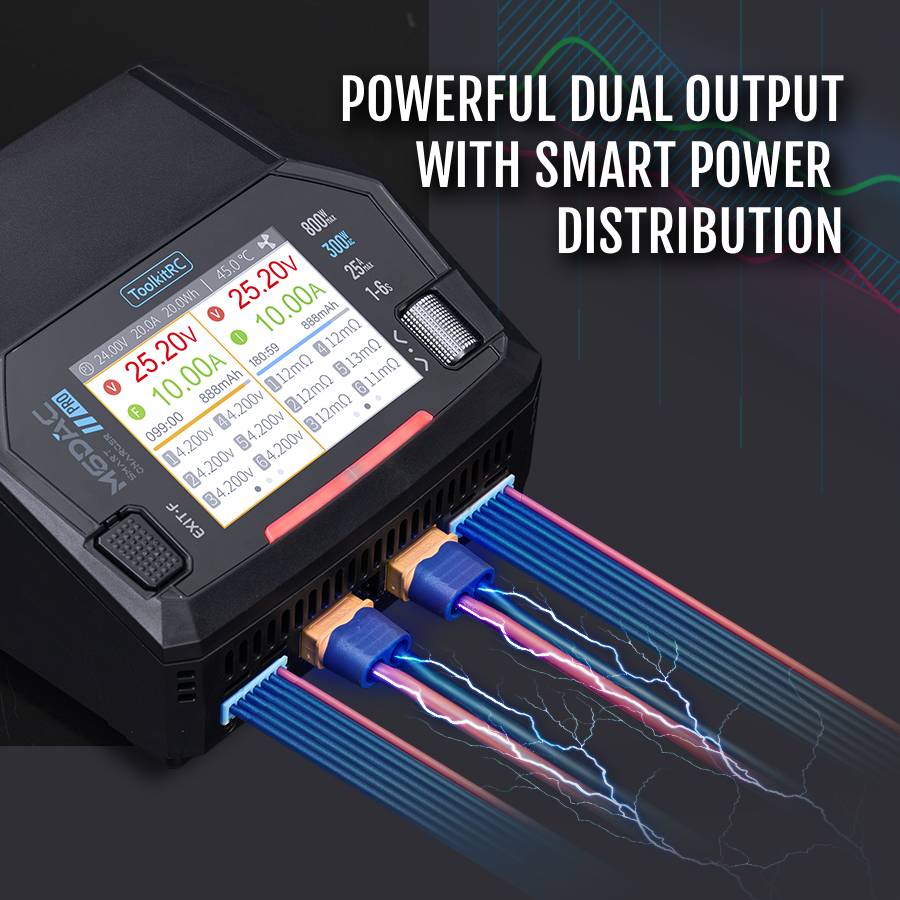

Powerful main dual output with Smart Power Distribution – the power is dynamically and intelligently distributed. Whenever only one channel is being used, the full power of the charger can be accessed through just one port

Automated fan speed – advanced cooling according to real-time heat demands

Larger Smart 2.8″ IPS LCD display – always clearly displaying the real-time charging status in any light level, environment or angle

Comprehensive security protection – short circuit, voltage protection, current protection, capacity protection, temperature protection, time out protection, cut-off protection and flame retardant



CHARGE

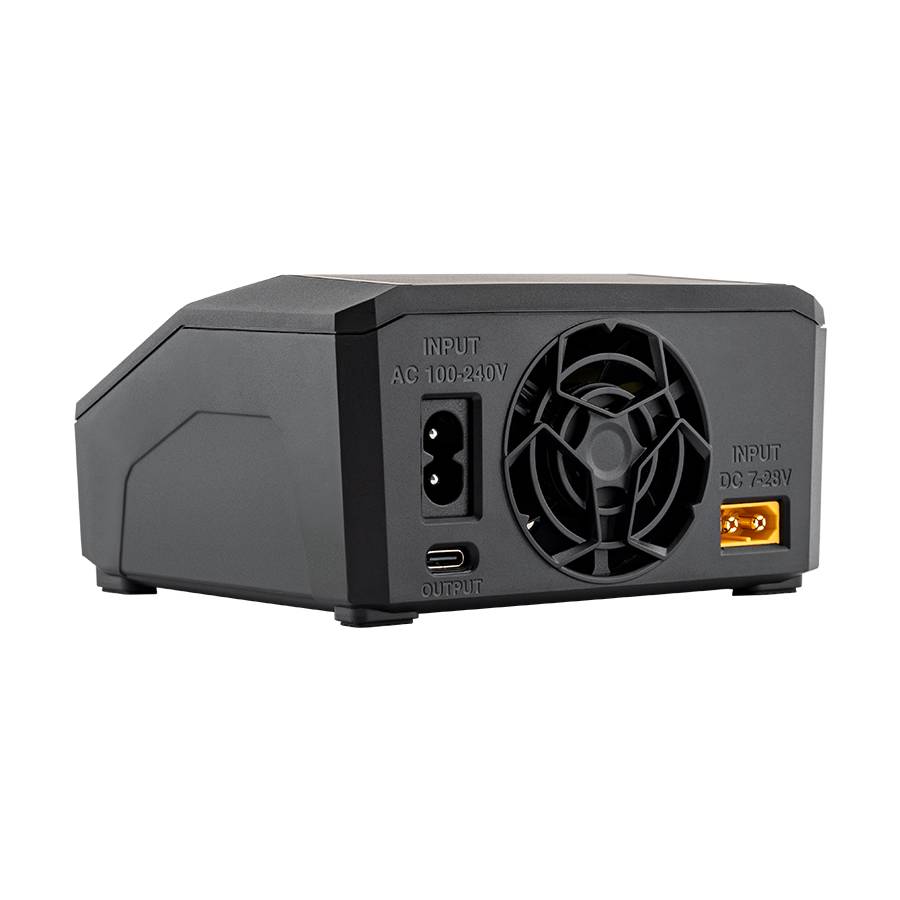

INPUT VOLTAGE

AC 100-240V@MAX 220WA

DC 7-28V@MAX32A

BATTERY TYPE

LiPo LiHV LiFe Lilon LTO @1-6S

NiMH@1-16S Pb@1-10S

BALANCE CURRENT

1000mA @ 2-6S

BALANCE ACCURACY

<0.005V

CHARGING POWER

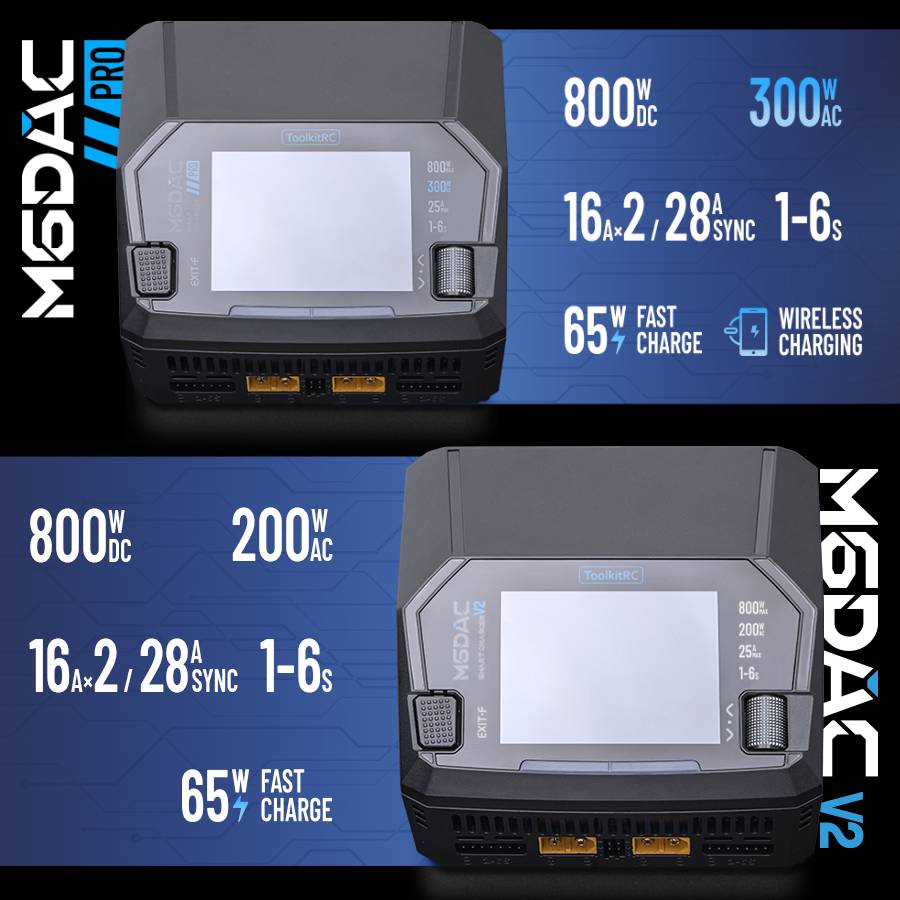

0.1-16A@400W or 28A @700W Sync

DISCHARGING POWER

0.1-16A@400W Bridge Discharge mode

0.1-16A@400W per channel in Recycling mode

0.1-3A@15W  per channel Normal mode

USBC OUTPUT

65A MAX 20.0V@ 3.25A or Upgrade










GENERAL

PRODUCT SIZE

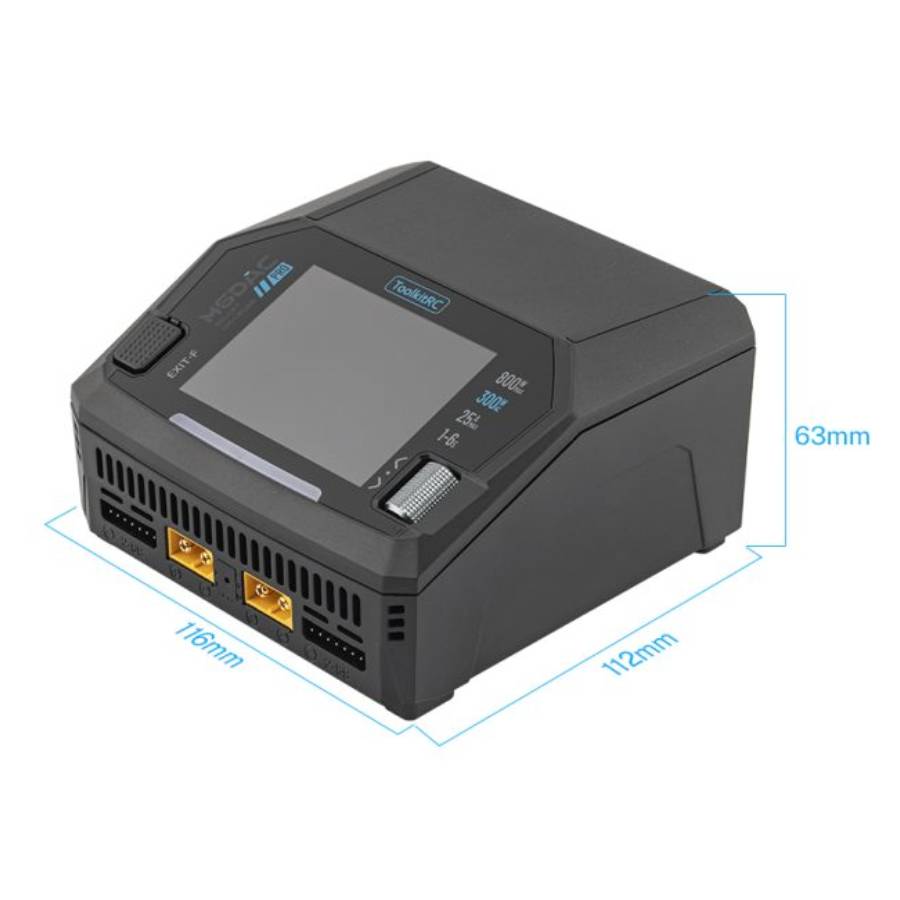

116×112×63mm

PRODUCT WEIGHT

570g

PACKING SIZE

164×135×68mm

PACKAGING WEIGHT

700g

LCD

IPS 2.8″ LCD 320×240px
